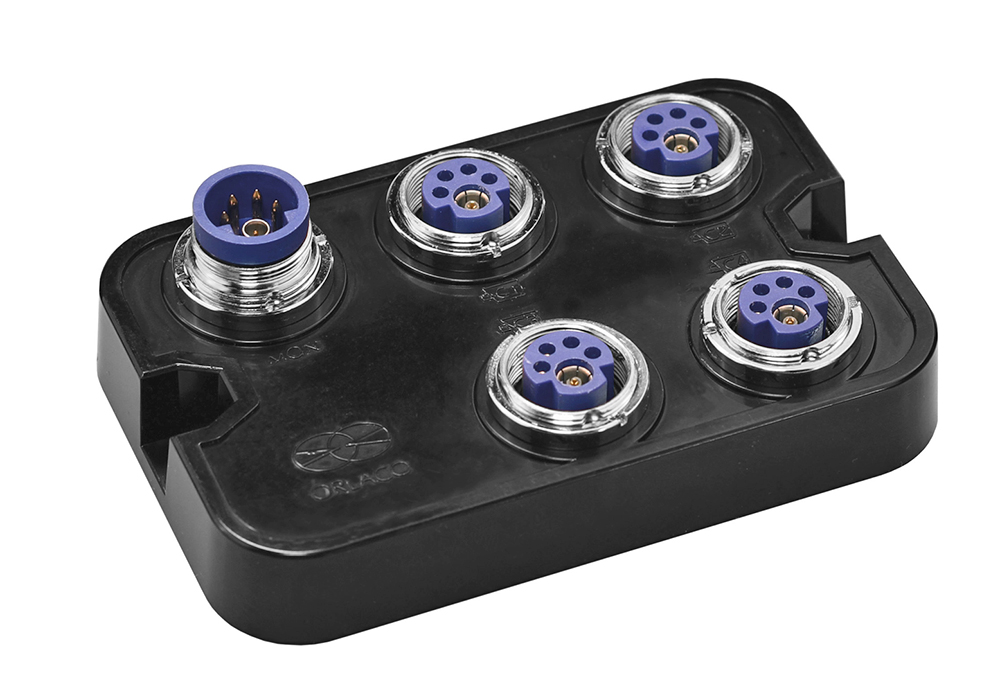

Orlaco GMSL Camera Switcher 4 Channel

Features & Details

Technical specifications

• Video input 4x camera inputs GMSL

• Video output 1x Orlaco monitor output GMSL

• Housing Cycoloy zwart

• Protection class Watertight IP67

• Operating temperature -40ºC to +85ºC

• Dimensions 102 x 66 x 16 (29) mm

• Weight 0,19kg

• Orlaco part 0404240

Description

PRODUCT DESCRIPTION

0404240 – The Orlaco GMSL Camera Switcher 4 Channel provides camera input and power supply for up to four GMSL HMOS cameras on one HLED Orlaco monitor.

The Orlaco GMSL Switcher enables up to four cameras to be connected to one Orlaco HLED monitor. The GMSL Orlaco Switcher can only be connected to a (Multiple) HLED Orlaco monitor and has four GMSL HMOS camera inputs. The cameras can be switched on the monitor automatically or manually.
