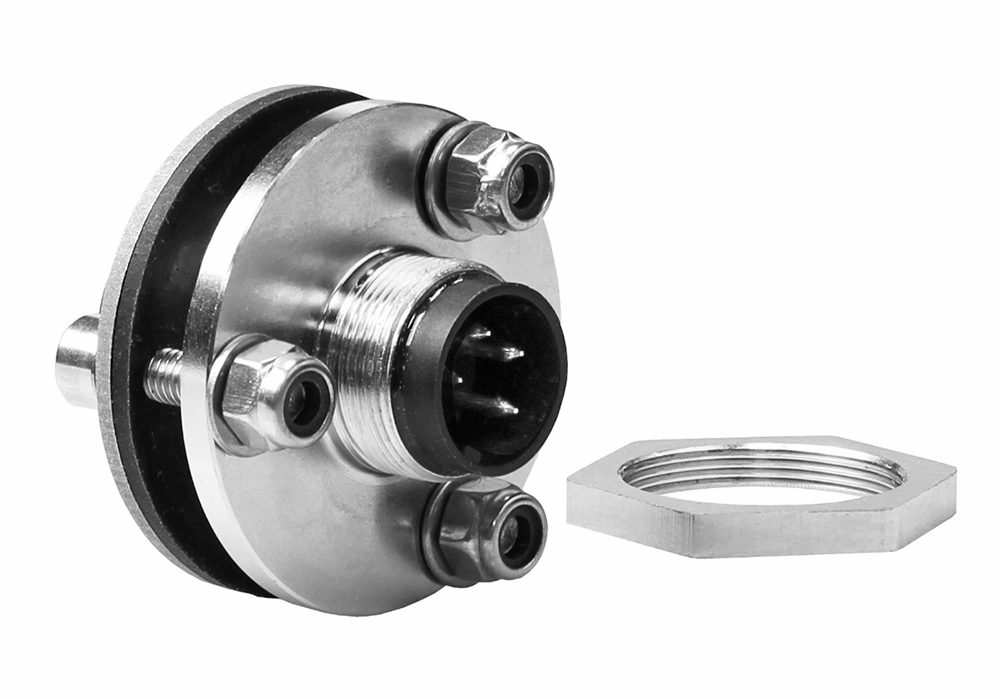

Orlaco Bulkhead Connector Molded 4pins
Features & Details
Technical specifications
• Material: Stainless steel 304
• Operating temp: -40oC to +85oC
• Protection: IP 67 according to IEC 60529
• Weight: 0,08Kg
• Connectors: 2 x 4 poles connector 723, gold (male & female)
• O-ring: 21 x 1,5 mm NBR70 (art. no. 3220040)
• Mounting instruction: A maximum torque of 22Nm for the M22 x 0,75 nut is acceptable
• Allplan: AP12-8153
• Orlaco Part: 0357011
PRODUCT DESCRIPTION
0357011 – Orlaco Bulkhead Connector Molded 4pins is a special Orlaco Bulkhead connector for transiting cables through panels or bodies.
Suitable for wall thickness 1 – 15mm. Stainless steel 304.
